特性:

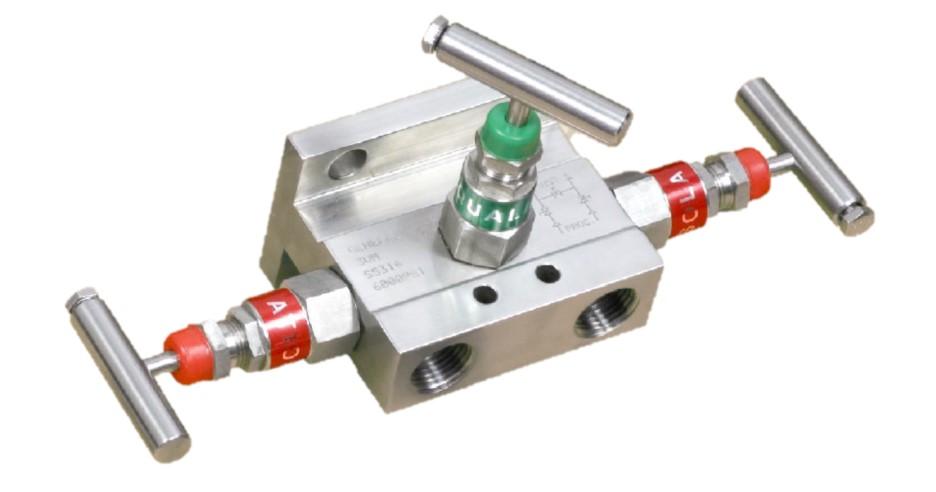

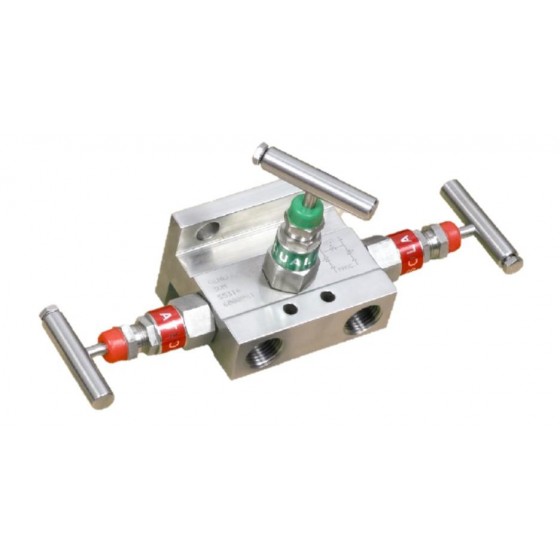

三通閥 - T Type
設計用於直接安裝在標準差壓變送器上。該集成塊包含三個閥門、兩個主要過程隔離閥和一個平衡閥。
上述的尺寸適用於大多數儀器中的標準 54 毫米或 2 1/8 英寸儀器連接中心距。也可用於具有其他中心距的儀器連接(如 55 毫米、56 毫米和 57 毫米),但顯示的尺寸會有所不同。請向我們諮詢這些尺寸。
標準規格:
Connections : Process : ½” NPT (F)
Instrument : Direct on instrument
Drain/Vent : ¼” NPT (F)
Test Pressure : @ 25°C Room Temperature
Hydrostatic : Body - 620 bar
Seat - 415 bar
Pneumatic : Seat - 40 bar
Gland Packing : PTFE : Standard
: GRAPHOIL: Temperatures above 180°C
Material: A 105, A 182 GR F 304, A 182 GR F 316, Monel, Hastelloy
Finish: CS zinc plated. SS Natural
Accessories : Two PTFE seal ring and four 7/16” UNF HI.
Steel mounting bolts available on request.
Mounting Kit : Mounting bracket with U bolts and necessary kits for fitting on 2”NB stanchion pipe stand or wall mount. (to be ordered separately)
Option : Drain Port on instrument side with drain plug.
Test Port on process side with plug.
Accessory : Mounting Bolts - IS : 1364 - 1960 - 4 Nos
Interface seal - PTFE / VITON - 2 Nos
